Siemens/Westinghouse W501F (FD3/FD4). GIMAN Energy installs the Nord-Lock Group 4-way joint solution on site: hydraulic closure system, cylinder alignment, load transfer to Superbolt multi-jackbolt tensioners and internal seal, with our own TFAs. 26 installs on the North American 501F fleet in 2025–2026.

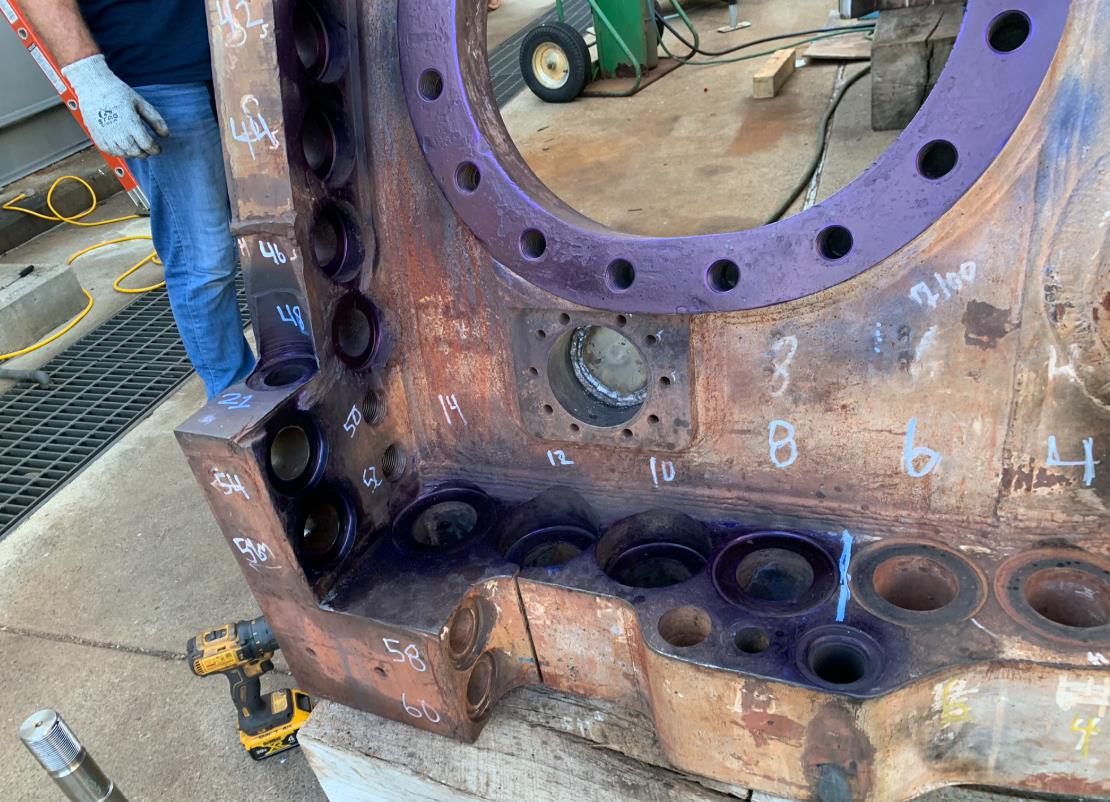

The 4-way joint is where the horizontal and vertical joints of the 501F cylinders meet. After years of thermal cycling and repeated disassembly the cylinders distort, the spigot fits no longer locate the halves and the flange faces lose contact. Hot combustion air escapes at the joint; welded leak boxes only contain it.
Nord-Lock Group engineered a mechanical solution for this joint. GIMAN Energy is the field execution channel: we bring the tooling and our TFAs, and install it per the manufacturer procedure during your outage.
| 1 · Hydraulic closure | A manifold fed by a single pump pressurizes the vertical and horizontal bolt positions on each side of the cylinder at the same time, squeezing the cylinder around the 4-way joint with uniform load. |
|---|---|
| 2 · Alignment | With the cylinder under load, misalignment between halves is read and corrected with the manufacturer's alignment hardware. |
| 3 · Load transfer | Superbolt multi-jackbolt tensioners are installed at the indicated positions and torqued to the procedure values while hydraulic load is held, so tension is never released at the joint. |
| 4 · Internal seal | The segmented internal seal and its retainers are fitted so combustion air is kept away from the joint across the operating temperature range. |
| Deliverables | Torque values, alignment readings, photo record of every retainer and seal position, as-found / as-left report. |
You send unit, frame revision and outage window. We confirm kit availability, match nut sizes to your bolt schedule and ship from Cleveland, TX.
Our TFAs run the site induction, verify the tooling against the casing and set up pump, manifolds and hoses per the manufacturer procedure.
Hydraulic load is applied in sequence and monitored on gauges. Readings and any deviations are recorded with your outage team.
Tooling is inspected, packed and returned. You receive the field service report and calibration records for your outage file.
Based in Cleveland, TX. Registered on GE Vernova / FieldCore's SAP Business Network and prequalified in ComplyWorks (score 98, Severe class).
Part of the 26 4-way joint installs delivered on the North American 501F fleet in 2025–2026 took place in Canada.
Bilingual crews (EN/ES). Quotes in USD; temporary import coordinated with your customs broker or importer of record, project by project.
Repeated thermal cycles distort the cylinders and misalign the flanges where the horizontal and vertical joints meet, so contact area is lost and hot gas escapes. Traditional welded leak boxes only contain the leak.
The scope is designed to run alongside a major or hot-gas-path inspection; the hydraulic closure system immobilizes the whole joint so every bolt is tensioned in sequence. GIMAN plans the scope with your outage team; timing depends on each unit's condition.
It squeezes the cylinder around the joint with uniform load so alignment can be read and corrected; the load is then transferred permanently to Superbolt multi-jackbolt tensioners.
Siemens/Westinghouse W501F FD3 and FD4 (SGT6-5000F family). For earlier revisions send us the unit data and we review compatibility with the manufacturer.
GIMAN Energy is an independent company. We execute 4-way joint installs as a field channel for Nord-Lock / Superbolt using their procedure and hardware; the solution itself is Nord-Lock Group's.
Four steps per the manufacturer procedure: (1) hydraulic closure of the vertical and horizontal bolt positions from a single pump; (2) alignment of the cylinder halves under load; (3) load transfer to Superbolt multi-jackbolt tensioners while hydraulic load is held; (4) fitting of the segmented internal seal and its retainers.
Torque values, alignment readings, a photo record of every retainer and seal position, and an as-found / as-left report.
A welded leak box only contains the hot gas escaping at the joint. The 4-way joint solution works on the cause: it closes and aligns the distorted cylinders, transfers the load to Superbolt tensioners and fits an internal seal that keeps combustion air away from the joint.
26 installs on the North American 501F fleet (United States and Canada), as the field execution channel for Nord-Lock / Superbolt.
The kit for your frame (hydraulic nuts or tensioners, hoses, pump, manifolds, gauges and adaptors), the manufacturer procedure, calibration records and, if you choose it, our own TFAs to install, operate and remove the tooling.
By project: kit rental, TFA days, mobilization and consumables as separate line items on the RFQ. Rate card on request. NDA available; POs through SAP Business Network or directly.
Yes. Our scope is the hydraulic tooling and its operation; cover lift, rigging and overall outage coordination stay with your prime. We align the sequence with your outage manager before mobilization.
Yes. Canada and Mexico / Latin America are quoted per project in USD, with temporary import handled together with your customs broker or importer of record.
Send us the unit, frame revision, bolt schedule and outage window. We come back with availability and a project quote.
